Agriculture from the sky
Effortless pest control, designed for easy use without advanced piloting skills required.
"Nile-JZ Plus" brochure
Download
Effortless pest control anytime
The Nile-JZ series automatically disperses liquid and granular agents. It's been designed for easy use without the need for advanced piloting skills making it accessible for a wide range of applications and people.
Needs
Reduce workload
and increase efficiency
Effortless pest control
without the special skills
Use of reliable Japanese drones
Features

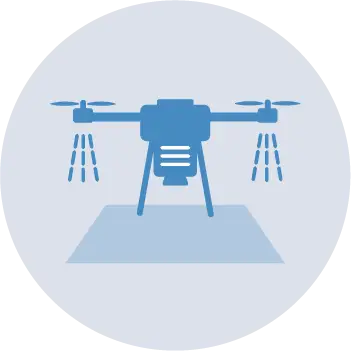

High Accuracy Autopilot
Accurate flight with location infocalculated by RTK-GNSS andmultiple sensors. Automatedbattery level detection andobstacle avoidance.

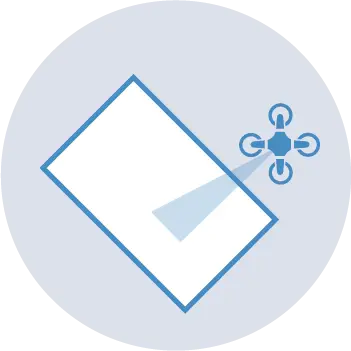

Variable rate application compatible
Spraying the required amount on the required area - based onthe satellite / drone analysis data.

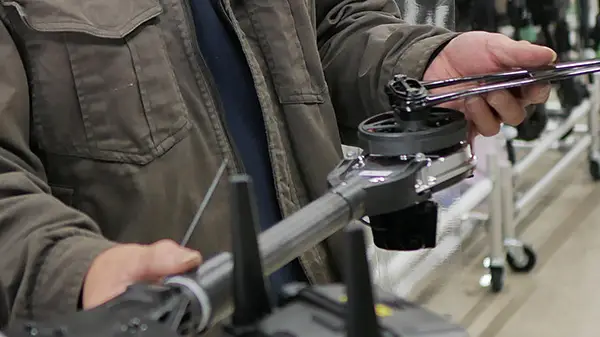

Made in Japan
Made in Japan for safety and convenience.Batteries can be quickly installedand removed.Foldable and hand carriable size.

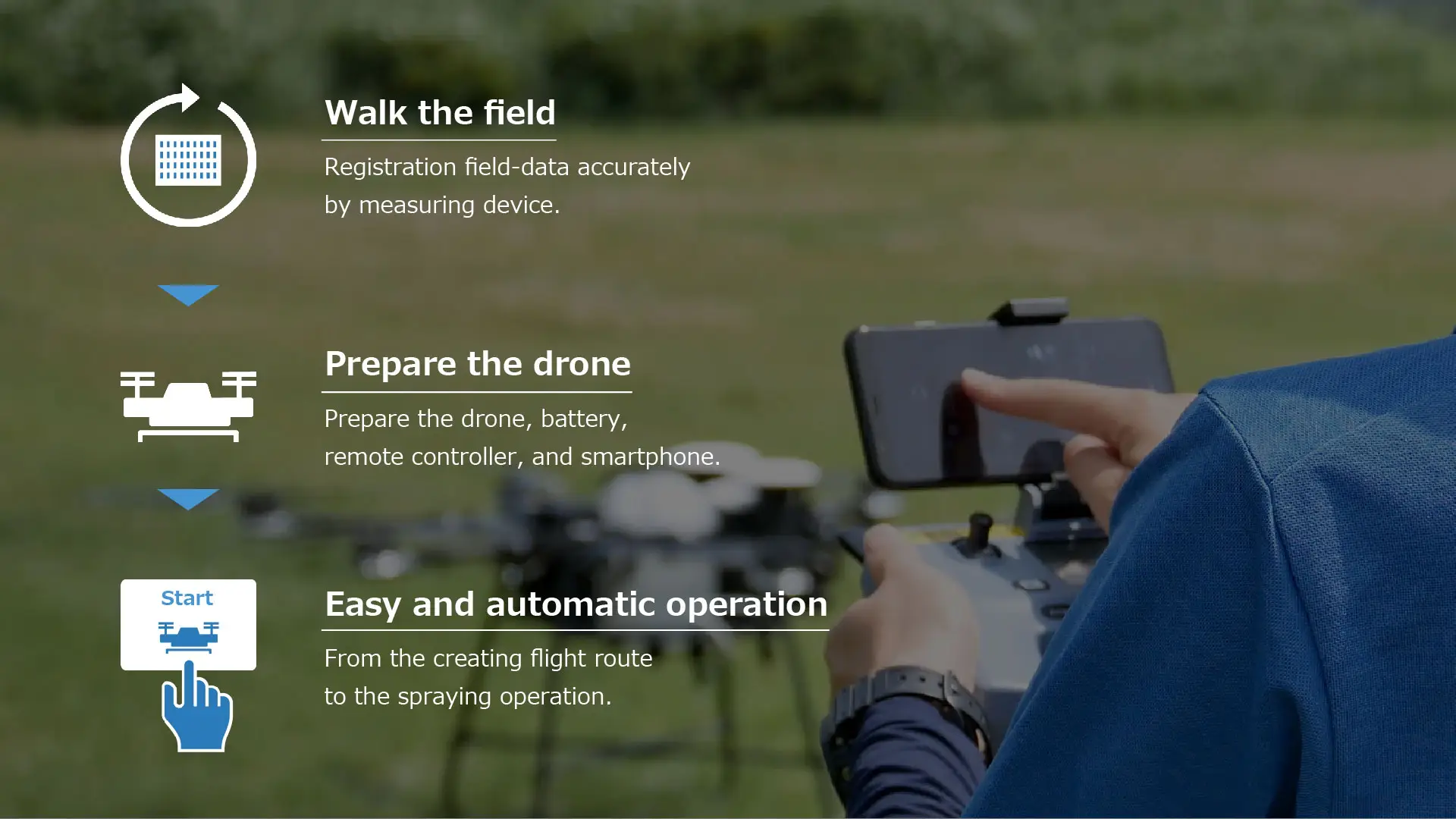

How to use
Reliable Support

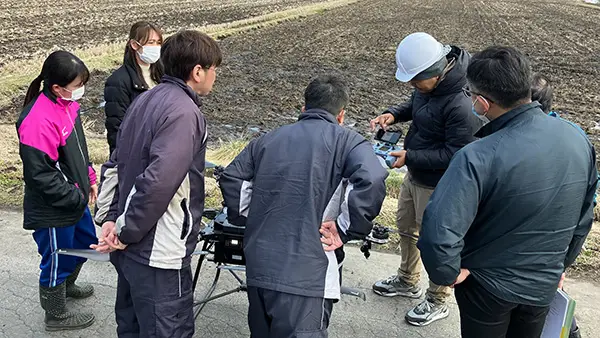

Preliminary training
You will take a course in order to safely fly drones. You will understand laws and regulations, automatic flight systems, etc., and learn drone flight practice and troubleshooting.
Real-time flight information
Flight information is transmitted to the monitoring server via communication lines. We will assist you with real-time information on the status of the drone, flight paths ,etc.
Expert group
We want to solve farmers' problems. This desire is our starting point. Our engineers improve functions and add new features to solve the problems faced by farmers.
Frequently Asked Questions
Q
What crops can it be applied to?
A
Paddy rice, wheat, soybeans, corn, burdock root, garlic, sweet potato, etc.
Product Specifications
| Nile-JZ Plus | Nile-JZ | ||
|---|---|---|---|
| Aircraft | Variable Rate Application | Included | Not Included |
Color | Black×White×Blue | Black×White | |
Aircraft Weight | 12kg ※Battery and tank not included | ||
Maximum Weight | 27kg | ||
Rotor Quantity | 6 | ||
Length×Width×Heigst （arms opened） | 1,916mm×2,110mm×727mm ※Tank included | ||
Length×Width×Heigst （ arms folded） | 716mm×626mm×727mm ※Tank included | ||
Frame | Box-frame structure | ||
Arm Storage | Foldable | ||
Protection Level （Dust and Water Resistance） | Equivalent to IP55 ※With battery terminal cap installed | ||
imum Flight Time | 15min | ||
Propellers | Propeller Diameter | 27inch | |
Propeller Type | CF Reinforced Resin （Foldable） | ||
Battery | Capacity | 799Wh | |
Voltage | 44.4V | ||
Length×Width×Height | 149mm×255mm×243mm | ||
Charger | Charging Method | Fast Charging （4slots） | |
Output | 100V 1200W / 200V 2400W | ||
Length×Width×Height | 350mm×250mm×155mm | ||
Spraying | Spraying Capacity | 8ℓ | |
Spirinkler Type | 2Nozzles | ||
Spray Width | 4.5m～ | ||
Spray Speed | ～20km/h | ||
Spray Amount | 800ml～/10a Can be set | ||
Spreading | Spread Tank Volume | 10ℓ | |
Spreader Type | Impeller | ||
Spread Width | 5m～ | ||
Spread Speed | ～20km/h | ||
Spread Amount | Can be set | ||
Communication | Communication Method | LTE / 2.4GHz | |
Positioning Method | Network RTK | ||
Specifications are subject to change without prior notice as some parts are currently under development.
This product is based on the aircraft developed in the project 'Development of High-specifications Drones for Safe and Secure Agriculture and Their Utilization Technologies,' which is part of the International Competitive Enhancement Technology Development Project. The project is implemented by National Agriculture and Food Research Organization (NARO) as the main entity (June 2021).
High-specifications Drone Development Consortium
Representative Institution: Yamaha Motor Co., Ltd.
Collaborative Research Institutions:
Companies: Xacti Corporaton, Nileworks Inc. YANMAR AGRIBUSINESS CO., LTD.
Research Institutions: National Agriculture and Food Research Organization (NARO), Oita Prefectural Agriculture, Forestry and Fisheries Research Center, Kagoshima Prefectural Institute for Agricultural Development, Saga Agricultural Research Center, Nagasaki Agricultural and Forestry Technical Development Center
